Detector Type

Constructive technology: CMOS


Detector size:

  • 220 mm x 220 mm
  • 300 mm x 300 mm

Constructive technology: a-Si


Detector size:

  • 210 mm x 210 mm
  • 230 mm x 230 mm
  • 300 mm x 300 mm

Planarix™

High Voltage Generator


Maximum power : 20kW


Fluoroscopy type: continuous, pulsed, DS, Cine


X-ray generator: Planarix™


X-ray source: housing

Applications

General surgery
Neurosurgery
Orthopedics

Pediatrics
Gastroenterology
Vascular surgery

Cardiology
Electrophysiology
Urology

Pain Management
Traumatology
Gynecology

Pain Management
Traumatology
Gynecology

Navigation interface: Brainlab

Many Views
Many Uses
User Friendly

Live image
Service view
Archive
Patient data
Image exporter
Dose report
Settings

C.W.I.

Convenient Workflow Interface

The user interface is designed to allow the user to work in a simple and fast way.

O.D.I.Q.
Optimized Dose and Image Quality

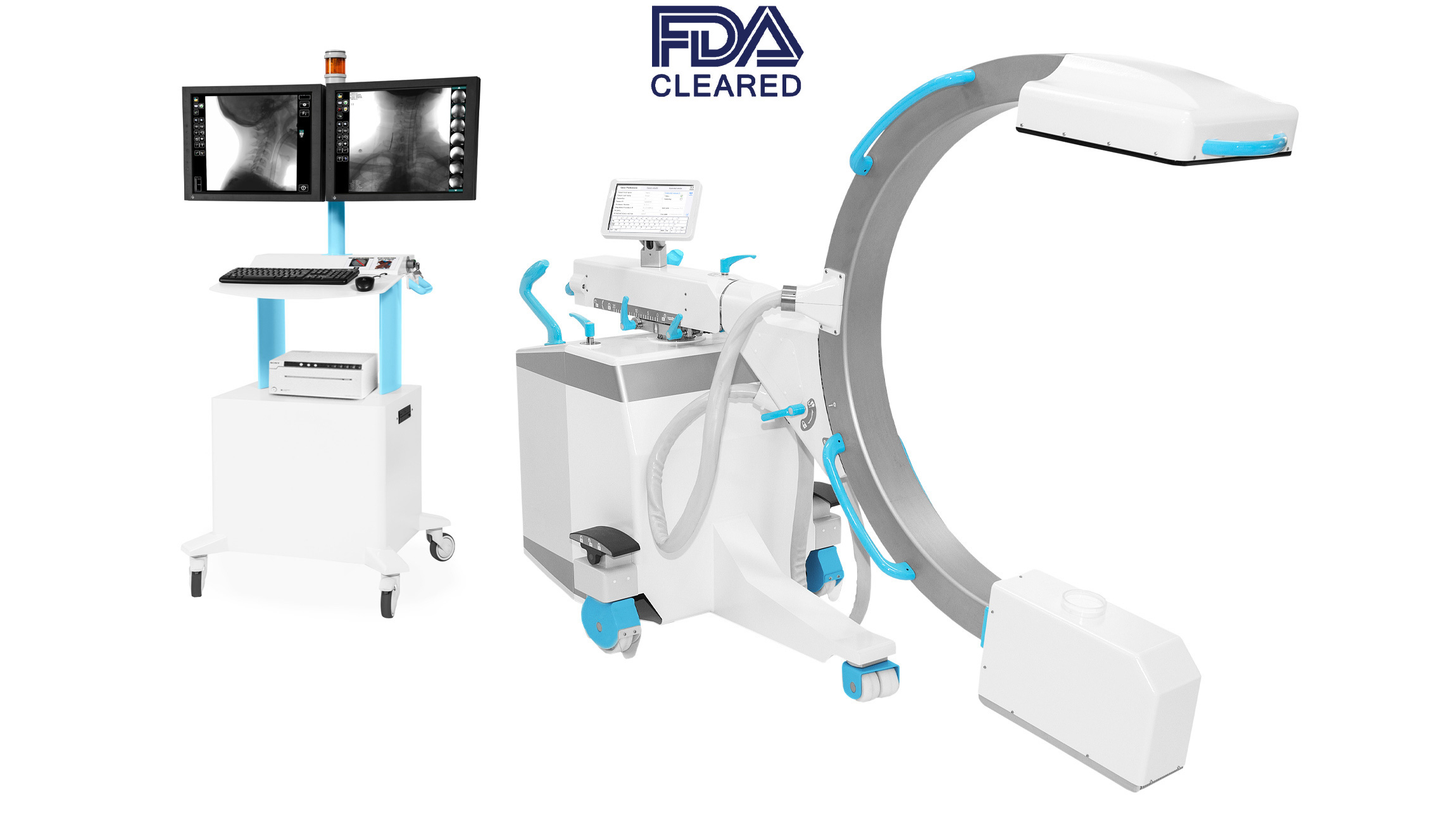

Automatic exposure control in the C015 system always provides optimized X-Ray values. This concept is very important in surgical procedures or in pediatric environment.

It is possible to capture detailed images even if the exposure conditions are disadvantageous.

STANDARD

WIDTH O.D.I.Q.

C015 system generates a detailed dose report showing the dose accumulated by the patient during the whole procedure, for each working mode.

R.S.E.

Real Square wave Emission

The Planarix™ generator in combination with its innovative inverter is able to provide square pulses to the X-ray tube starting from 5msec, providing superb image quality at minimum dose ratio.

I.S.C.

Intelligent Speed Control

The anode speed is automatically increased or decreased (3000 / 10.000 rpm respectively) according to the X-Ray function selected by the user.

M.C.S.

Micronica Connecting System

Our C-arm system can be interfaced with the RIS PACS hospital network to offer at the customer the best way to a secure and efficient workflow.

The DICOM implemented are:
· Store
· Storage commitment
· Worklist
· Print
· MPPS
· Query retrieve
· Ratiation dose structured report

Automatic Cooling System

Today dynamic flat panel C-arms are used for many surgical treatments each day and sometimes with extended X-ray exposure: it is therefore essential to have an efficient cooling system.

The Micronica C-Arm offer different cooling systems, with active liquid cooling and automatic heat management with 500 W to 1200 W of continuous dissipation.

These cooling solutions available in Micronica products allow the user a very long working time.
